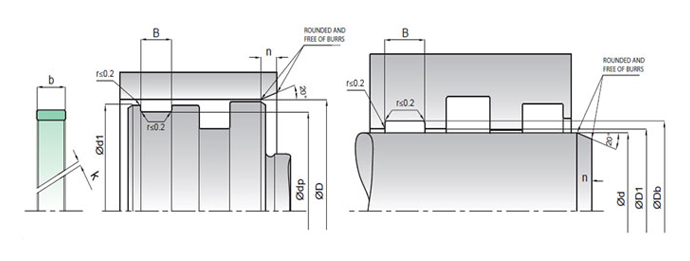

K 73 is a piston - rod guide ring designed to be used in heavy duty hydraulic and pneumatic systems.
PRODUCT ADVANTAGES
• High load bearing capacity
• Minimum static and dynamic friction coefficient for a
minimum energy loss and operating temperature
• Able to be used behind the sealing element on dry
condition
• High dimension stability during the operating
temperatures
• Easy assembly
• Wide range of dimensions
APPLICATION
Mobile hydraulics , excavators , mining equipment , marine
hydraulics , presses and heavy duty cylinders.
| MATERIAL | CODE |
| POLYESTER RESIN | NB8005 |
| POM | PR6501 |
OPERATING CONDITION |
|||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -40°C +120°C | +5°C +60°C | -40°C +40°C |
| DYNAMIC CONTACT PRESSURE | ≤100 Bar | ≤100 Bar | ≤100 Bar |
| SPEED | ≤1.0 m/sn | ≤1.0 m/sn | ≤1.0 m/sn |
