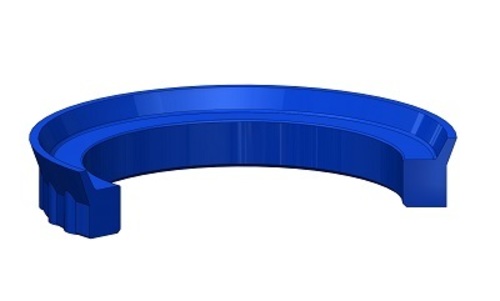

K101 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic cylinders. The lip is designed in a particular way that it reliably wipes off the dirt but leaves a residual oil film on the rod.
PRODUCT ADVANTAGES
• Good wiping effect
• Simple groove design
• No twisting in the housing
• Economical sealing solution
• Easy installation
APPLICATION
Agricultural machinery , single acting cylinders in industrial
equipment.
| MATERIAL | CODE | |
| PU | 92 SHORE A | PU9201 |
| OPERATING CONDITIONS | |||
| MEDIA | Mineral oils (DIN 51524) | HFA ve HFB | HFC |
| TEMPERATURE | -30°C +100°C | +5°C +50°C | -30°C +40°C |
| SPEED | ≤1.0 m/sn | ≤1.0 m/sn | ≤1.0 m/sn |
| KASTAŞ NO | D(H11) | d(h11) | S1(-0/+0.2) | d1(h11) | r1 | b |
|---|---|---|---|---|---|---|
| K101-100 | 100 | 91,4 | 5,3 | 97 | 1 | 7 |
| K101-109 | 109 | 100 | 7 | 105 | 1 | 10 |
| K101-110 | 110 | 101,4 | 5,3 | 107 | 1 | 7 |
| K101-125 | 125 | 116,4 | 5,3 | 122 | 1 | 7 |
| K101-80 | 80 | 71,4 | 5,3 | 77 | 1 | 7 |
| K101-85 | 85 | 76,4 | 5,3 | 82 | 1 | 7 |
| K101-89 | 89 | 80 | 7 | 85 | 1 | 10 |
