K30 is a single acting wiper seal combination which consists of a metal vulcanized with elastomeric nitrile rubber using special production methods.
PRODUCT ADVANTAGES
• Superior wiping effect
• Superior sealing effect
• Wide range of dimensions
• Able to work in hard conditions
• Good adjustment to temperature changes due to the metal
ring
APPLICATION
Pneumatic cylinders.
| MATERIAL | CODE | ||
| NBR | 70 SHORE A | NB7001 | |
| STEEL | ST37 | FE9901 |
OPERATING CONDITION |
||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +105°C | |
| PRESSURE | ≤16 Bar | |
| SPEED | ≤1.0 m/sn |

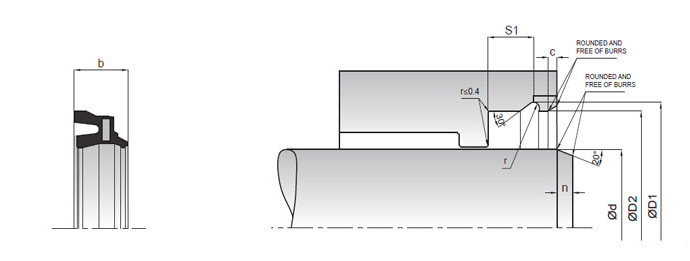

| KASTAŞ NO | d (f9) | D1 (± 0,1) | D2 (H10) | b | S1 (-0/+0, | r | c |
|---|---|---|---|---|---|---|---|
| K30-010 | 10 | 19 | 17 | 8.4 | 7.5 | 1,1 | 1.5 |
| K30-012 | 12 | 24 | 22 | 9,5 | 8,5 | 1,1 | 1,5 |
| K30-012/1 | 12 | 20 | 22 | 8.5 | 7.5 | 1.1 | 1.5 |
| K30-014 | 14 | 26 | 24 | 9,5 | 8,5 | 1,1 | 1,5 |
| K30-016 | 16 | 28 | 26 | 9,5 | 8,5 | 1,1 | 1,5 |
| K30-018 | 18 | 28 | 26 | 8,5 | 7,5 | 1,1 | 1,5 |
| K30-020 | 20 | 32 | 30 | 9,5 | 8,5 | 1,1 | 2 |
| K30-022 | 22 | 34,5 | 32 | 9,5 | 8,5 | 1,4 | 2 |
| K30-025 | 25 | 37,5 | 35 | 9,5 | 8,5 | 1,4 | 2 |
| K30-030 | 30 | 42,5 | 40 | 9,5 | 8,5 | 1,4 | 2 |
| K30-032 | 32 | 44,5 | 42 | 9,5 | 8,5 | 1,4 | 2 |
| K30-035 | 35 | 47,5 | 45 | 9,5 | 8,5 | 1,4 | 2 |
| K30-040 | 40 | 52,5 | 50 | 9,5 | 8,5 | 1,4 | 2 |
| K30-045 | 45 | 57,5 | 55 | 9,5 | 8,5 | 1,4 | 2 |
| K30-050 | 50 | 63,2 | 60 | 9,5 | 8,5 | 1,8 | 2 |
