K64 is a single acting pneumatic rod seal ensuring that foreign particles are not introduced into the pneumatic cylinders. The lip is designed in a particular way that it functions as a rod seal and wiper.
PRODUCT ADVANTAGES| MATERIAL | CODE | |
| PU | 92 SHORE A | PU9201 |
OPERATING CONDITION |
||
| NBR | ||
| MEDIA | Prepared , dried and de-oiled compressed air | |
| TEMPERATURE | -30°C +80°C | |
| PRESSURE | ≤16 Bar | |
| SPEED | ≤1.0 m/sn |

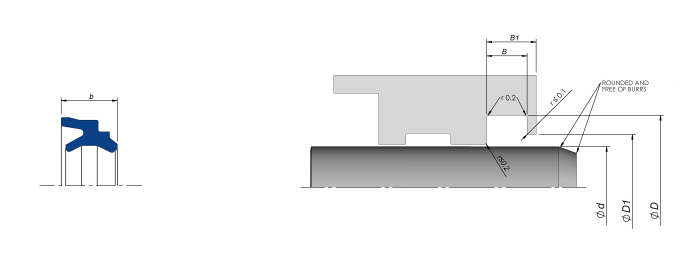

| KASTAŞ NO | d(e9) | D(H10) | D1(H11) | B(+0.2/-0.0) | B1 | b |
|---|---|---|---|---|---|---|
| K64-012 | 12 | 16,50 | 14,20 | 3,00 | 3,60 | 4 |
| K64-016 | 16 | 20,50 | 18,20 | 3,00 | 3,60 | 4 |
| K64-020 | 20 | 25,00 | 22,40 | 3,40 | 4,00 | 4,6 |
| K64-025 | 25 | 30,00 | 27,40 | 3,40 | 4,00 | 4,6 |
| K64-030 | 30 | 35,5 | 32,9 | 4 | 4,8 | 6 |
| K64-04 | 4 | 8,10 | 6,70 | 3,00 | 3,80 | 4 |
| K64-06 | 6 | 11,10 | 9,10 | 3,60 | 4,60 | 5 |
| K64-08 | 8 | 14,10 | 12,10 | 3,60 | 4,60 | 5 |
| K64-10 | 10 | 16,10 | 14,10 | 4,20 | 5,40 | 6 |
