BATC ASOCHROME 50 IH

SubtitleInduction hardened chrome plated steel bars Introduction.

Induction hardening is a form of heat treatment in which the chrome plated steel bar is heated by induction heating and then quenched. This heat treatment is increasing the hardness and brittleness of the chrome plated bars.Induction Hardened Chrome plated steel bars are used as piston rods for hydraulic cylinders in applications operating in standard and demanding conditions.Our customers use Induction Hardened Chrome plated steel bars to produce pneumatic cylinders that work at pressures higher than 200 bars. Applications for standard conditions are defined as applications working in a non-particular corrosive environment. Applications for demanding conditions are used in heavy duty and corrosive environment.
We recommend these chrome plated steel bars made from C45E+IH steel for most standard piston rods.

A-CHROME BATC Technical Properties.

Diameter Tolerance Standard is ISO-f7. We can provide special tolerance at premium price.
Residual Magnetism Standard is Max. 50 Gauss. We can provide special magnetism at premium price.
Roundness – max ½ from the diameter tolerance.
Surface Roughness is Ra = max 0.20 µm.
Surface Hardness Chrome Layer hardness is minimum 900 HV 0,1. Steel-grade C45E IH surface hardness is minimum 55HRC.
Straightness for ∅<20 [mm] is max 0,3 [mm]/1000 [mm] and for ∅≥20[mm] is max 0,2[mm]/1000[mm].
Chrome Layer thickness for ∅≤19.05 [mm] is minimum 15[µm] and for ∅>20[mm] is minimum 20[µm].
Corrosion Resistance is given by the salt spray test results. These tests are following the ISO 9227 and ISO 10289 standards. The results of these tests are giving the rating of our products.

ASO HYDRAULICS & PNEUMATICS chrome plated steel bars corrosion resistance.

Standard Corrosion Resistance for Φ<20 is R9/120h and for Φ≥20 is R9/200h according to NSS tests.
EXTRA Corrosion Resistance for Φ≥20-140 is R10/120h and R9/500h according to NSS tests.
EXTRA PLUS Corrosion Resistance for Φ≥20-140 is R10/500h according to NSS tests.

We can provide Double Chrome Layer at premium price.Weldability of the induction hardened chrome plated steel bars is good.Machinability is good but taking into consideration the higher surface hardness given by the heat treatment. Packaging A-CHROME products are supplied in 3 different packaging options. Standard packaging is made with plastic sleeves or paper tubes (depending on the product’s diameter). Special Packaging (seaworthy protected) with additional cost is made with aluminum foil or vacuum bags. As an Extra protection with additional cost we can provide also wooden boxes.

Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.

Each bar is marked individually on the plastic/paper tube with info about the date, product series, diameter, tolerance, resistance at saltwater spray test, heat no ,production order and so on. The batch has a label with information regarding: Order no, Item no, Heat no, Steel Grade, total length of the batch, Weight, no of pieces in the batch.

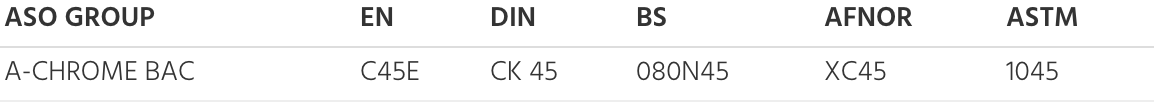

SubtitleSteel grade correspondents table.

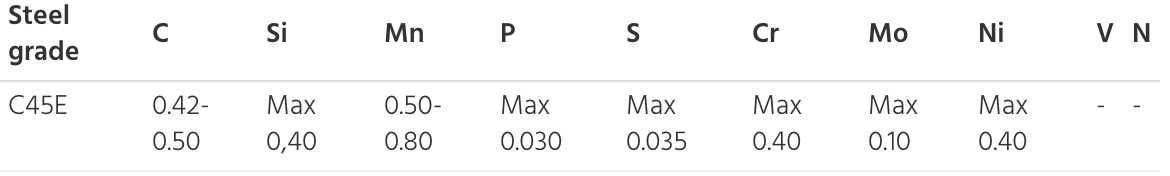

Chemical Composition table

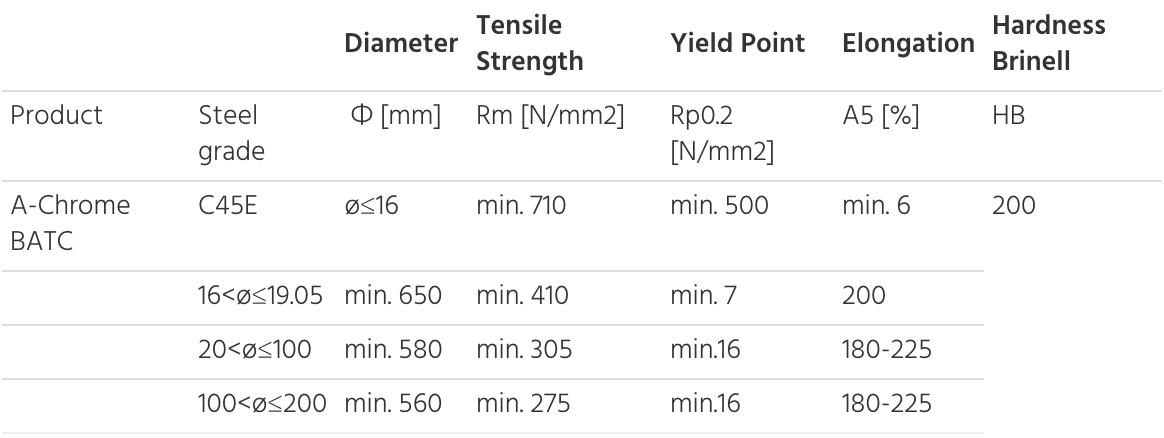

Mechanical Properties table

^{Some diameters may be subject to a minimum quantity requested}*
^**^{Lengths may vary depending on the Chroming process use}
*^{***Other diameters, lengths/cut lengths can be provided at premium price}*

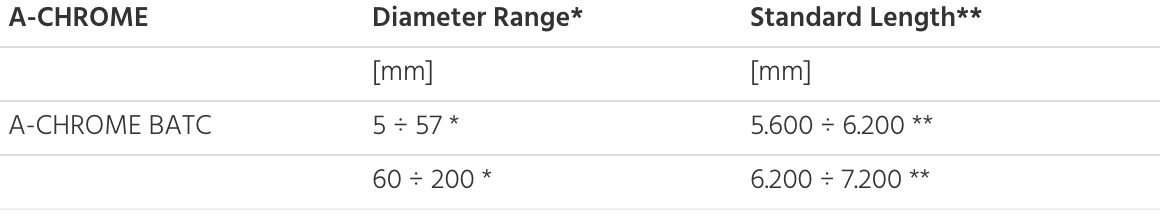

SubtitleDimensional Properties table

A-CHROME BATC Technical Properties.

Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.

KRAKÓW

NOWY SĄCZ

BATC ASOCHROME 50 IH

SubtitleInduction hardened chrome plated steel bars Introduction.

A-CHROME BATC Technical Properties.

ASO HYDRAULICS & PNEUMATICS chrome plated steel bars corrosion resistance.

Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.

SubtitleSteel grade correspondents table.

Chemical Composition tableMechanical Properties table

*Some diameters may be subject to a minimum quantity requested**Lengths may vary depending on the Chroming process use***Other diameters, lengths/cut lengths can be provided at premium priceSubtitleDimensional Properties table

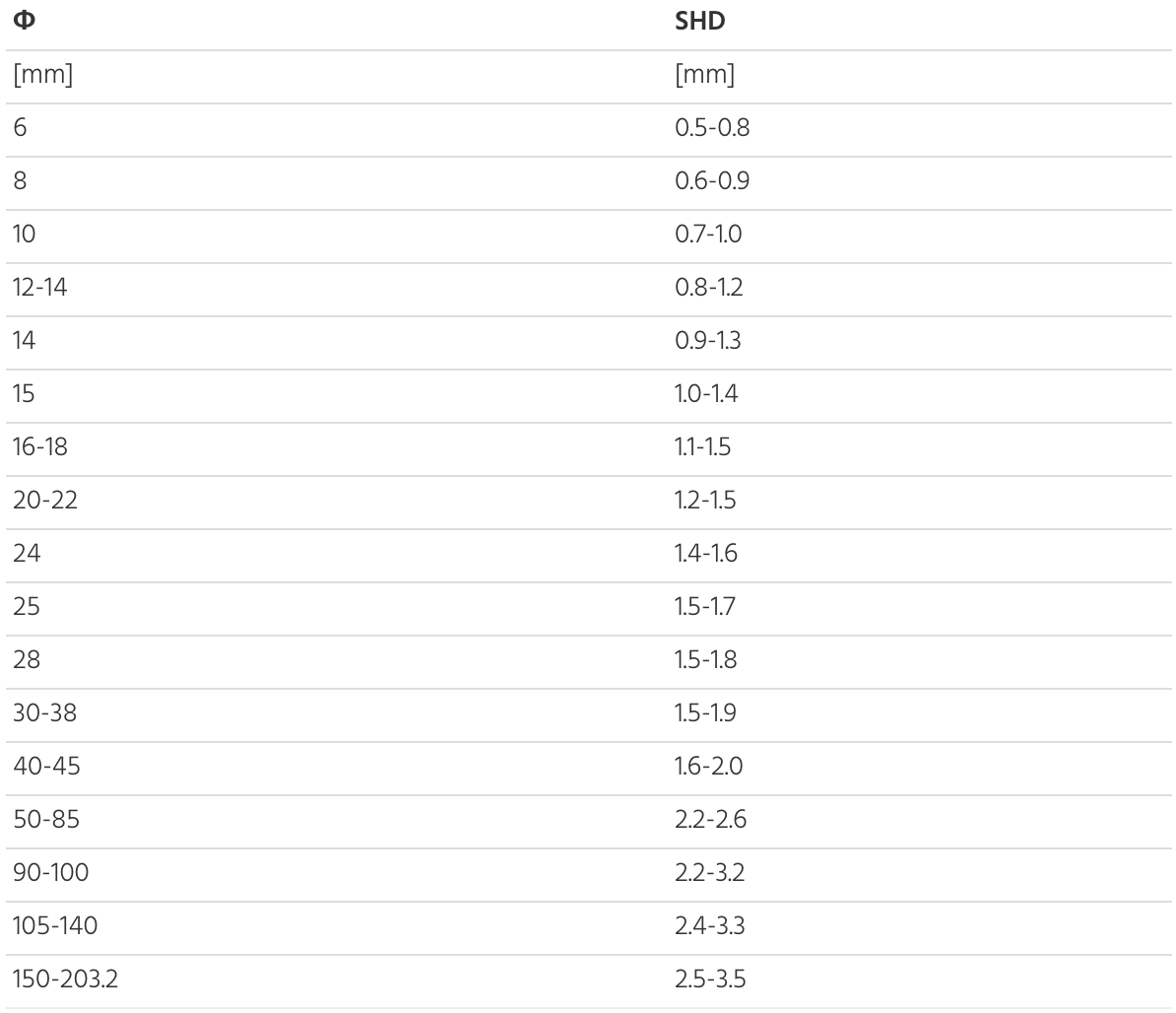

Hardening Depth table

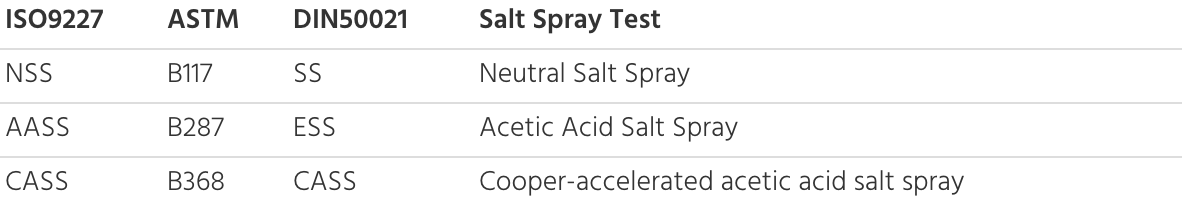

Corrosion Test standards table
