Tłoczyska rurowe chromowane po zewnątrz, tolerancja f7.
Chrome plated steel tubes Introduction.
Chrome plated Steel tubes made from E355 + SR steel.Chrome plated steel tubes are used to build hydraulic cylinders. The chrome surface is giving good wear and corrosion resistance.Chrome plated steel tubes have a good durability and helps diminishing friction. It has been proven that chrome plated steel tubes can be used as piston rods in order to have a lighter hydraulic cylinder.We recommend for long reach cylinders A-TUBE TUC as the best option to build lighter cylinders.

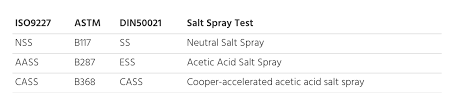

Standard Corrosion Resistance for Φ<20 is R9/120h and for Φ≥20 is R9/200h according to NSS tests.
EXTRA Corrosion Resistance for Φ≥20-140 is R10/120h and R9/500h according to NSS tests.
EXTRA PLUS Corrosion Resistance for Φ≥20-140 is R10/500h according to NSS tests.
We can provide Double Chrome Layer at premium price.Weldability of these chrome plated steel tubes is excellent.Machinability of these chrome plated steel tubes is excellent.Packaging A-TUBE products are supplied in 3 different packaging options:
Standard packaging is made with plastic sleeves or paper tubes (depending on the product’s diameter).
Special Packaging (seaworthy protected) with additional cost is made with aluminum foil or vacuum bags.
As an Extra protection with additional cost we can provide also wooden boxes.
Marking in ASO HYDRAULICS & PNEUMATICS has a full trace-ability.
Each tube is marked individually on the plastic/paper tube with info about the date, heat no production order tolerance and so on. The batch has a label with the following information: Order no, Item no, Heat no., Steel Grade, OD x ID; total length of the batch, Weight, no of pieces in the batch.
Chemical Composition table.
*CEV calculated with the formula:
Dimensional Properties table.
*Some diameters may be subject to a minimum quantity requested **Lengths may vary depending on the Chroming process used ***Other diameters, lengths/cut lengths can be provided at premium price
